良固鋁青銅聯動式

三通球閥組

應用于船舶海水過濾系統

大型船舶發動機的持續運行，離不開穩定的海水冷卻系統。

而在這一系統中，過濾器的連續運行直接關系到整套系統的安全與穩定。

船舶海水過濾系統通常采用雙路設計：一路運行，一路備用；或一路維護，另一路持續工作。

那么，兩路過濾系統如何實現不停機、不中斷、可靠切換？

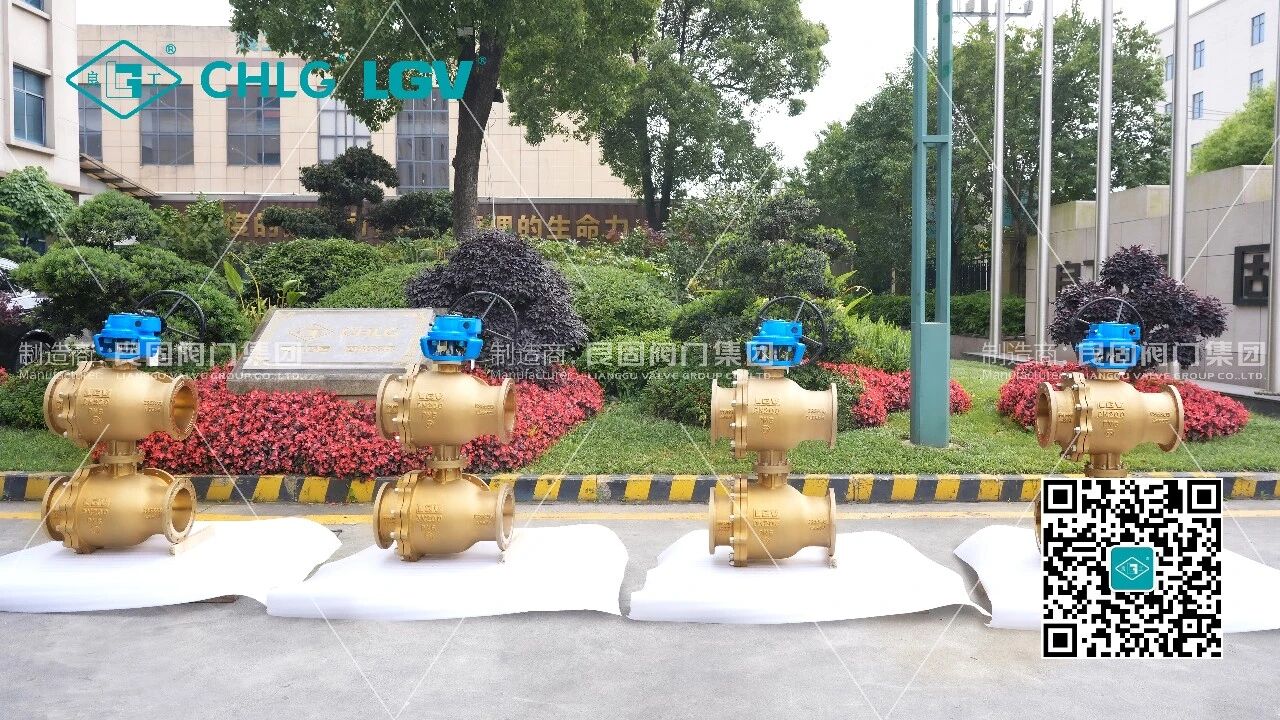

良固閥門近期交付的 C95800 鋁青銅聯動式雙聯三通球閥組，正是為這一需求制造交付。

它專為海水介質、雙路冗余和連續運行工況打造，確保雙路系統能安全、可靠地切換。

The continuous operation of large ship engines relies on a stable seawater cooling system.

Within this system, the uninterrupted operation of filters directly affects the safety and stability of the entire system.

Ship seawater filtration systems typically use a dual-line configuration: one line in operation while the other is on standby, or one line under maintenance while the other continues working.

So how can the two filtration lines switch reliably without shutdown or interruption?

The C95800 Aluminum Bronze Actuated Dual Three-Way Ball Valve Assembly recently delivered by LIANGGU Valve is designed precisely for this requirement.

It is engineered for seawater service, dual-line redundancy, and continuous operation, ensuring safe and reliable switching between the two lines.

這款產品，“特殊”在哪里？

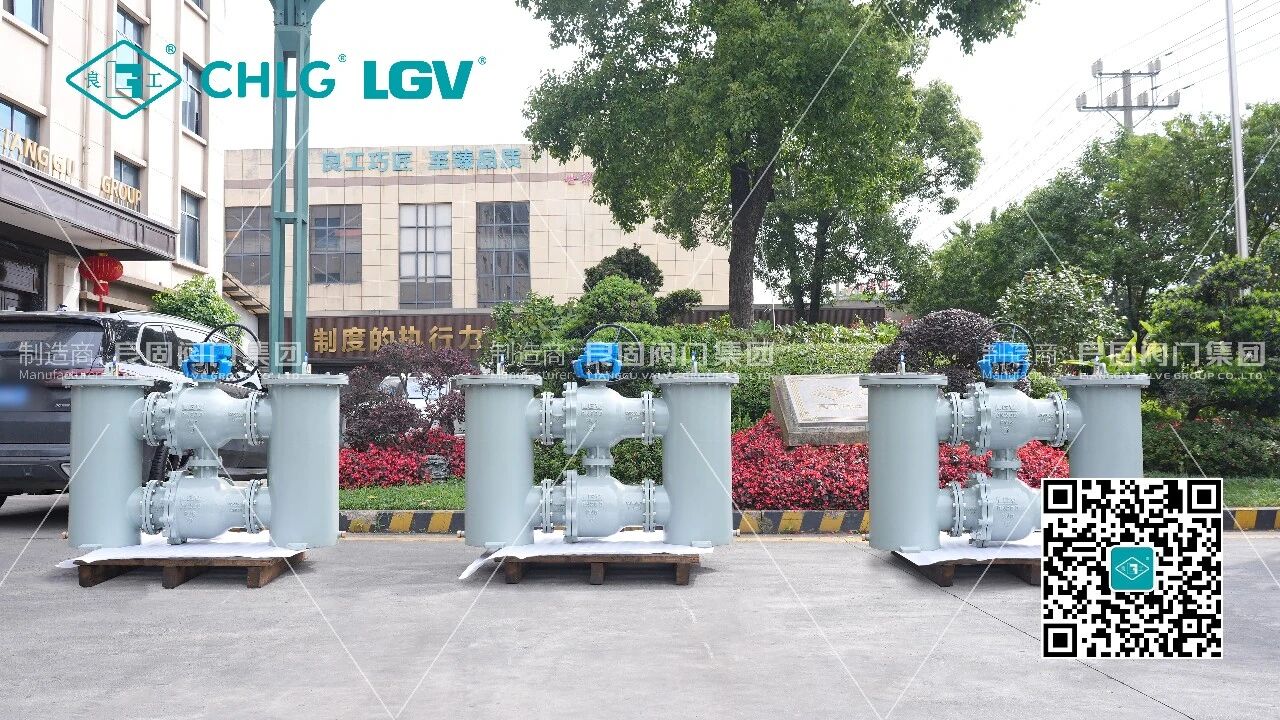

結構上，這款產品采用上下雙三通球閥聯動設計。

兩只三通球閥通過聯動機構同步動作，在不改變系統既定流向的前提下，實現兩路過濾通道之間的快速切換。

核心作用不是分流，而是換向：

1-雙閥聯動，同步切換

上下閥體聯動控制，避免多閥獨立操作帶來的不同步問題，使切換動作更直接、更清晰。

2-貼合雙路過濾器工況

適用于一路工作、一路備用的系統設計，也適用于過濾器在線維護時的快速切換需求。

3-提高系統運行確定性

在船舶連續運行場景中，越是關鍵的切換節點，越需要減少人為不確定性。聯動式閥組，本質上就是在降低系統切換風險。

Structurally, this product features an actuated dual three-way ball valve design.

The two three-way ball valves operate synchronously through a linkage mechanism, enabling rapid switching between the two filtration lines without altering the system’s predefined flow path.

Its core function is not flow distribution, but directional change:

1-Synchronized dual-valve operation

The upper and lower valve bodies are linked for coordinated control, avoiding desynchronization issues caused by independent valve operation, and making the switching action more direct and precise.

2-Optimized for dual-line filtration systems

Suitable for systems with one line in operation and one on standby, as well as for scenarios requiring rapid switching during online filter maintenance.

3-Enhanced operational certainty

In continuous shipboard operations, the more critical the switching point, the greater the need to minimize human-induced uncertainty. The actuated valve assembly effectively reduces switching risks within the system.

如果說結構解決的是切換問題，那么材質解決的就是壽命與穩定性問題。

這款閥組閥體采用C95800 鋁青銅材質。

在船舶及海工領域，這是一類成熟且具有代表性的耐海水材料，尤其適用于高鹽、高濕、高腐蝕環境下的海水介質工況。

其主要優勢包括：

-優異的抗海水腐蝕能力；

-良好的抗氯離子腐蝕性能；

-較強的抗沖刷能力；

-良好的抗氣蝕性能。

If the design addresses the switching function, the material ensures durability and operational stability.

The valve bodies of this assembly are made of C95800 Aluminum Bronze.

In the shipbuilding and offshore industry, this is a well-established and representative material for seawater service, particularly suited for high-salinity, high-humidity, and highly corrosive seawater conditions.

Its key advantages include:

-Excellent resistance to seawater corrosion；

-Strong resistance to chloride-induced corrosion；

-High erosion resistance；

-Good cavitation resistance.

適用場景

C95800 鋁青銅聯動式雙聯三通球閥組適用于以下工況：

-船舶海水過濾系統

-船舶冷卻海水系統

-海工平臺海水管路

-海水介質雙路切換系統

-一用一備冗余管路系統

凡是對雙路切換可靠性、海水耐腐蝕性能、系統連續運行能力有要求的場景，這類聯動式閥組都具備明確應用價值。

This product is suitable for the following applications:

-Shipboard seawater filtration systems；

-Ship cooling seawater systems；

-Offshore platform seawater piping；

-Dual-line seawater switching systems ；

-One-active, one-standby redundant piping systems；

In any scenario requiring reliable dual-line switching, seawater corrosion resistance, and continuous system operation, this actuated valve assembly demonstrates clear application value.

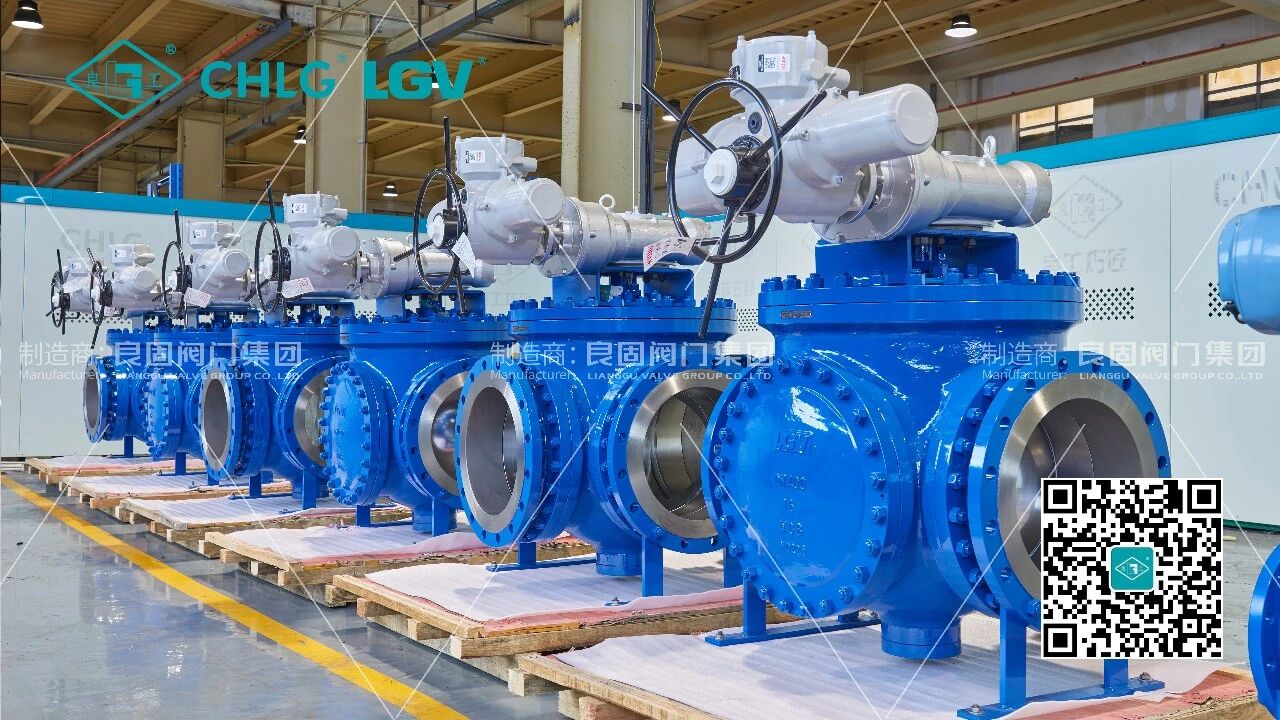

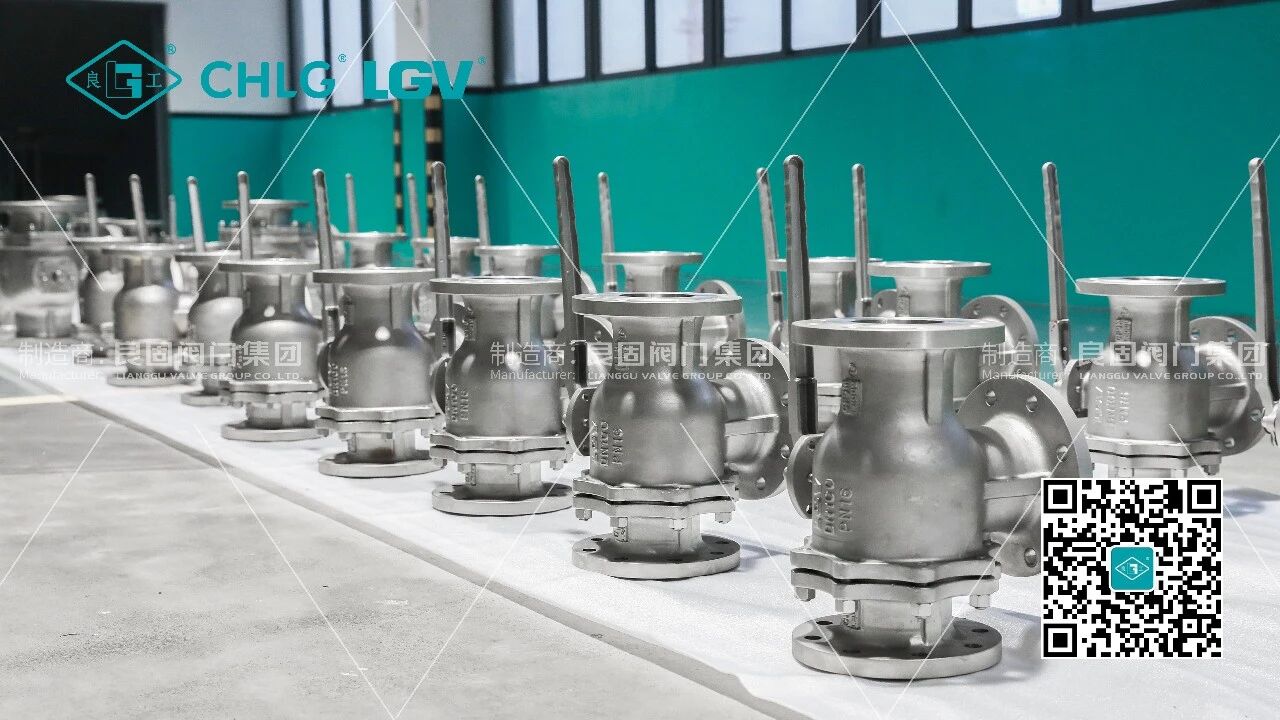

目前，我們可根據不同介質、壓力等級及系統工況需求，提供L型、T型等多種流道形式的三通球閥產品，材質覆蓋WCB、CF8、CF8M、不銹鋼、雙相鋼、鋁青銅等多種類型，適用于石油、化工、船舶、電力、水處理、海工等行業的分流、合流、換向及雙路切換工況。

針對不同項目需求，產品可配套手動、氣動、電動等多種驅動方式，并支持高溫、高壓、耐腐蝕、防沖刷等特殊工況定制。

從標準型三通球閥，到復雜工況下的聯動式三通閥組，良固持續圍繞工業流體控制中的“切換”需求，積累產品制造與工程應用經驗，為更多復雜管路系統提供穩定可靠的閥門解決方案。

Currently, we can provide a wide range of three-way ball valves in L-port and T-port configurations to meet different media, pressure ratings, and operating conditions.

Available materials include WCB, CF8, CF8M, stainless steel, duplex stainless steel, and aluminum bronze, widely applied in flow diverting, mixing, switching, and dual-line changeover systems across oil & gas, chemical processing, marine, power generation, water treatment, and offshore industries.

According to project requirements, the valves can be equipped with manual, pneumatic, or electric actuators, and support customized solutions for high-temperature, high-pressure, corrosion-resistant, and anti-abrasion service conditions.

From standard three-way ball valves to linkage-operated three-way valve assemblies for complex operating systems, LIANGGU continues to build extensive manufacturing and engineering experience around industrial flow switching applications, providing reliable valve solutions for demanding pipeline systems.
